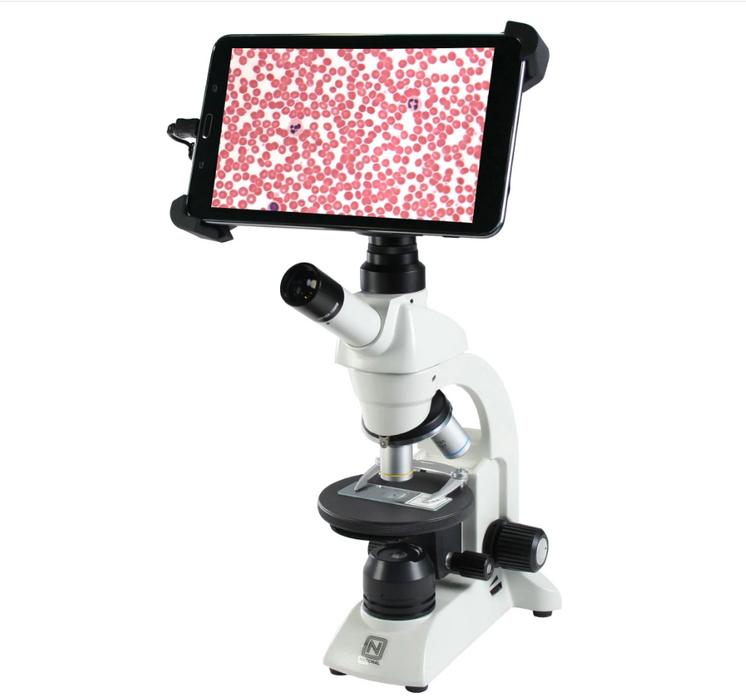

Introducing National Optical & Scientific Instruments' new line of digital compound microscopes with detachable 8" LCD tablet! The BTI1-205-LED features high speed, full-resolution imaging technology built into some of our most popular microscopes.
This WiFi digital tablet transmits live images to iOS or Android devices. Use it as a conventional microscope or share live images with colleagues using WiFi tablets, wireless laptops, and wireless devices. Tablet includes preloaded Motic apps.
Connect, view, and share images easily and affordably with the BTI1-205-RLED.
Download the tablet manual here.

OPTICAL SYSTEM

Widefield 10x /18mm eyepiece
30° inclined forward-facing monocular head
4X, 10X and 40X Achromatic objectives

ILLUMINATION

70mW/3.5v rechargeable LED illumination with intensity control

FOCUSING

Seperate coarse and fine focus

STAGE

Floating and rotating stage with unique one-touch stage clips

FRAME

Rugged cast aluminum, gray enamel finish

TABLET

8" LCD Android tablet with 1280x800 screen resolution
Connection: WiFi; micro SD card
WiFi Resolution 1920x1080 / 1280x720
4.0MP capture resolution
WiFi (2.4 or 5GHz) and Ethernet (RJ45)
MotiConnect App
Connect 5 WiFi devices at one time
Connect office/clinic/business network through RJ45 port connection

PACKING

Molded styrofoam container
Tablet shipped in same box with microscope
Individual: Ship wt. 8.2 kgs (18 lbs), Dimensions 28x23x64cm (11x9x25 in.)
Master carton pack 1 each: Ship wt. 8.2 kgs (18 lbs), Dimensions 28x23x64cm (11x9x25 in.)
